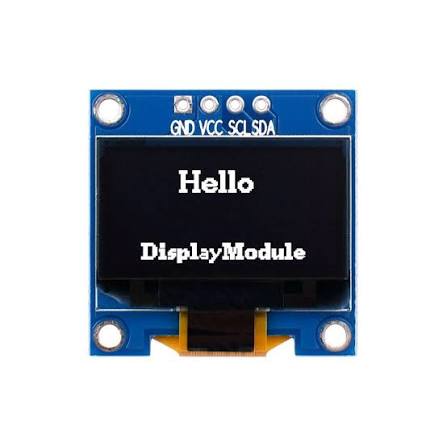

0.96" OLED Display – I2C / SPI Module

Overview

Compact 0.96‑inch OLED display with 128×64 resolution. Supports both I2C and SPI interfaces via solder bridge selection. Low power consumption with wide viewing angle, ideal for Arduino, ESP, and wearable projects.

Key Features

• Resolution: 128×64 pixels
• Driver: SSD1306
• Interface: I2C or SPI (selectable)
• Supply voltage: 3.3–5V
• Low power consumption

Specifications

• Viewing angle: >160°
• Pixel size: 0.04mm²

Dimensions & Weight

• Length: ~27 mm
• Width: ~27 mm
• Height: ~4 mm
• Weight: ~5 g

Package Includes

• 1 × 0.96 OLED Display Module

Applications

• Arduino and ESP project displays
• Wearables and portable devices
• Status indicators and menus
