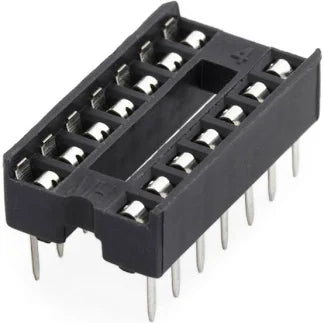

14‑Pin IC Base (DIP Socket)

Overview

14‑pin DIP socket for standard 0.3″ wide ICs. Allows easy insertion and removal of chips for prototyping, testing, and PCB repairs.

Key Features

• 14 pins
• 0.3″ row spacing
• Tin‑plated contacts
• Through‑hole mounting

Specifications

• Contact resistance: <20mΩ

Dimensions & Weight

• Length: ~17 mm
• Width: ~7 mm
• Height: ~5 mm
• Weight: ~1 g

Package Includes

• 1 × 14‑Pin IC Socket

Applications

• IC sockets for prototyping
• Easy chip replacement and testing
• PCB assemblies
