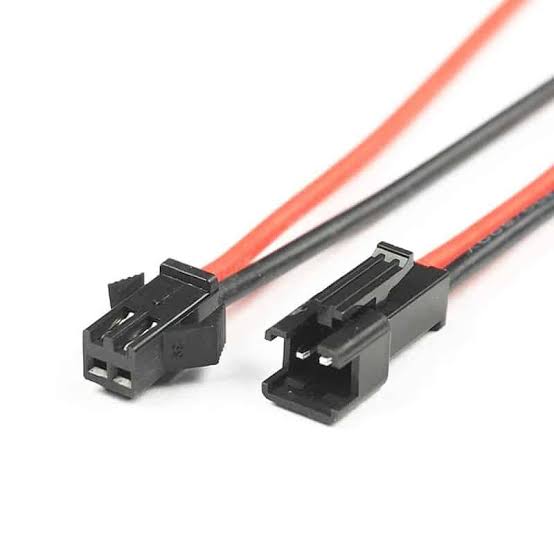

2‑Pin JST Connector – 2.54mm Pitch

Overview

2‑pin JST XH series connector with 2.54mm pitch. Used for battery interconnects, sensor wiring, and low‑power applications. Secure latch prevents accidental pull‑out.

Key Features

• Pitch: 2.54mm
• Current rating: 3A
• Voltage rating: 250V
• Secure latch mechanism
• Housing: PBT (UL94 V‑0)

Specifications

• Wire gauge: 22–26 AWG

Dimensions & Weight

• Length: ~8 mm
• Width: ~6 mm
• Height: ~6 mm
• Weight: ~1 g

Package Includes

• 1 × 2‑Pin JST Connector (housing + crimp pins)

Applications

• Battery pack connections
• Sensor and module wiring
• DIY electronics and robotics
