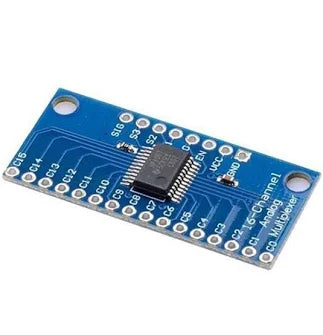

74HC4067 16‑Channel Analog Multiplexer Module

Overview

74HC4067 16‑channel analog multiplexer/demultiplexer module. Expands analog inputs of microcontrollers using only 4 digital pins. Low on‑resistance (~50Ω).

Key Features

• 16‑to‑1 or 1‑to‑16 channel
• Low on‑resistance (~50Ω)
• Digital control (4‑bit address)
• Breakout board for easy use

Specifications

• Supply Voltage: 2–6V
• Bandwidth: 100MHz

Dimensions & Weight

• Length: ~25 mm
• Width: ~20 mm
• Weight: ~5 g

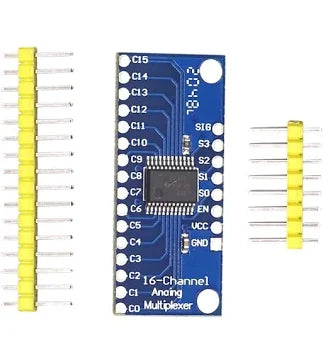

Package Includes

• 1 × 74HC4067 Module

Applications

• Expanding analog inputs for ADCs
• Sensor multiplexing
• Arduino and embedded projects
