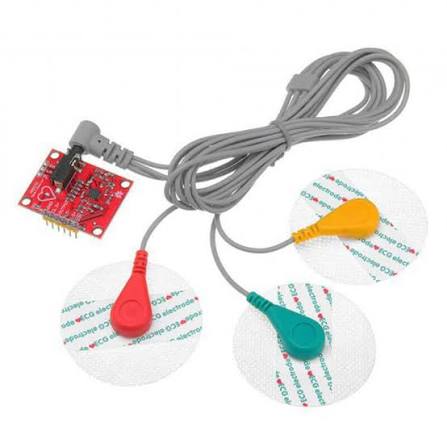

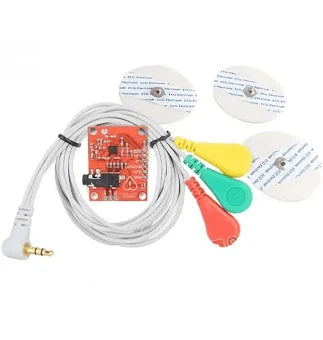

AD8232 ECG Sensor Module

Overview

AD8232 heart rate monitor (ECG) module for measuring electrical heart signals. Analog output. Supply: 3.3V. Ideal for wearable health devices.

Key Features

• Analog output
• Supply: 3.3V
• Integrated instrumentation amplifier
• Lead‑off detection

Specifications

• Operating voltage: 3.3V

Dimensions & Weight

• Length: ~25 mm
• Width: ~15 mm
• Weight: ~3 g

Package Includes

• 1 × AD8232 Module

Applications

• ECG and heart rate monitoring
• Wearable and medical devices
• Arduino and bio‑sensing projects
