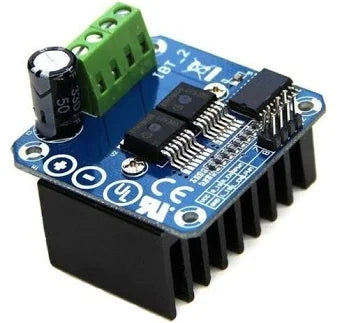

BTS7960 43A High‑Power H‑Bridge Motor Driver

Overview

BTS7960 based high‑current H‑bridge driver capable of 43A continuous current. Ideal for heavy‑duty robots, electric vehicles, winches, and industrial motor control.

Key Features

• 43A continuous, 80A peak
• Low on‑resistance (0.014Ω)
• Over‑current and over‑temperature protection
• PWM frequency up to 25kHz

Specifications

• Supply Voltage: 6–27V
• Logic Voltage: 3.3–5V

Dimensions & Weight

• Length: ~60 mm
• Width: ~60 mm
• Weight: ~50 g

Package Includes

• 1 × BTS7960 Motor Driver Module

Applications

• Heavy‑duty robotics and automation
• Electric vehicles and winches
• Industrial motor control
