CNC Shield V3

Overview

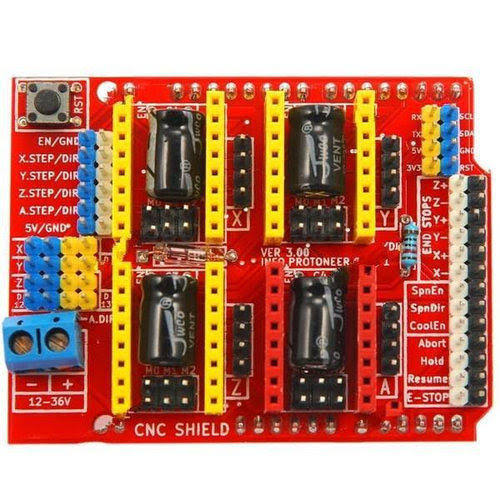

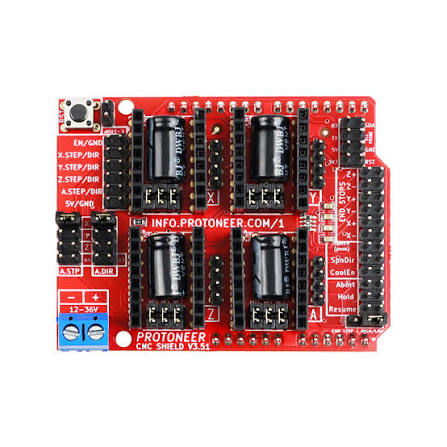

CNC shield V3 for Arduino Uno. Controls up to 3 stepper motors with A4988/DRV8825 drivers.

Key Features

• Fits Arduino Uno
• 3 stepper driver sockets
• Microstepping jumpers
• 12–36V power input

Specifications

• Logic Voltage: 5V

Dimensions & Weight

• Length: ~68 mm
• Width: ~53 mm
• Weight: ~20 g

Package Includes

• 1 × CNC Shield V3

Applications

• Small CNC machines and engravers
• 3D printers and laser cutters
• DIY automation
