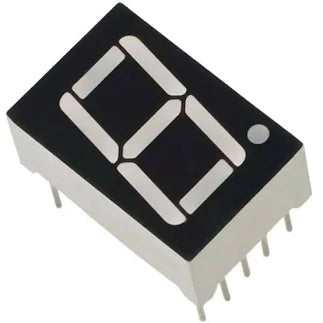

Common Cathode 7‑Segment Display

Overview

Single‑digit 7‑segment LED display with common cathode configuration. Standard 0.56″ digit height. Through‑hole pins.

Key Features

• Single digit
• Common cathode
• Digit height: 0.56″
• Through‑hole pins

Specifications

• Forward voltage: 2V (red) / 3V (green/blue)
• Current: 20mA per segment

Dimensions & Weight

• Length: ~20 mm
• Width: ~12 mm
• Height: ~8 mm
• Weight: ~2 g

Package Includes

• 1 × Common Cathode 7‑Segment

Applications

• Numeric displays for counters and clocks
• Arduino and embedded projects
• Educational electronics
