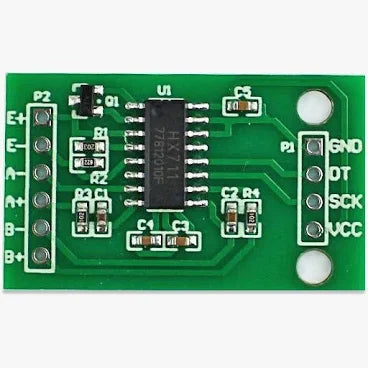

HX711B 24‑Bit ADC for Load Cell

Overview

HX711B precision 24‑bit ADC for weighing scales and load cells. SPI interface. Low noise, two differential inputs.

Key Features

• 24‑bit resolution
• Low noise
• Supply: 2.6–5.5V
• Two differential inputs

Specifications

• Data rate: 10 or 80 SPS

Dimensions & Weight

• Length: ~25 mm
• Width: ~15 mm
• Weight: ~3 g

Package Includes

• 1 × HX711B ADC Module

Applications

• Weighing scales and force measurement
• Load cell interfacing
• Industrial and medical devices
