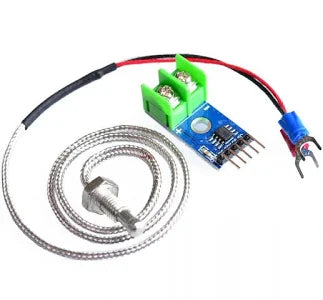

MAX6675 Thermocouple ADC Module (SPI)

Overview

MAX6675 cold‑junction compensated K‑type thermocouple ADC with SPI interface. 12‑bit resolution (0.25°C). Temperature range 0–1024°C.

Key Features

• K‑type thermocouple input
• 12‑bit resolution (0.25°C)
• SPI interface
• Temperature range: 0–1024°C

Specifications

• Supply: 3.3–5V

Dimensions & Weight

• Length: ~25 mm
• Width: ~15 mm
• Weight: ~5 g

Package Includes

• 1 × MAX6675 Module

Applications

• High‑temperature measurement
• Industrial and lab monitoring
• Arduino and embedded projects
