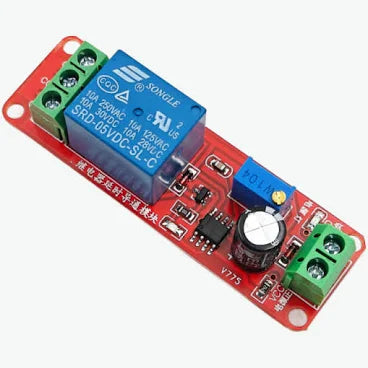

NE555 Delay Timer Module

Overview

NE555 based timer module configurable as monostable (delay) or astable oscillator. Adjustable delay via potentiometer (0.1s–10min). Supply 5–15V.

Key Features

• Adjustable delay via potentiometer
• Trigger and reset pins
• Output: relay or transistor
• Supply: 5–15V

Specifications

• Delay Range: 0.1s–10 min

Dimensions & Weight

• Length: ~30 mm
• Width: ~20 mm
• Weight: ~10 g

Package Includes

• 1 × NE555 Delay Timer Module

Applications

• Timing and delay circuits
• Pulse generation and control
• Arduino and standalone projects
