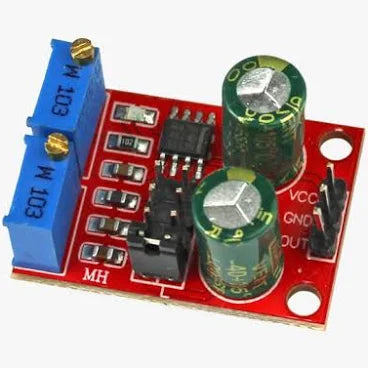

NE555 Pulse Generator Module

Overview

NE555 astable oscillator for generating square wave pulses. Frequency adjustable (~1Hz–200kHz). Output transistor for load driving.

Key Features

• Adjustable frequency and duty cycle
• Output transistor for load driving
• Supply: 5–15V

Specifications

• Frequency Range: ~1Hz–200kHz

Dimensions & Weight

• Length: ~30 mm
• Width: ~20 mm
• Weight: ~10 g

Package Includes

• 1 × NE555 Pulse Generator Module

Applications

• Clock and pulse generation
• LED and motor PWM control
• DIY electronics and testing
