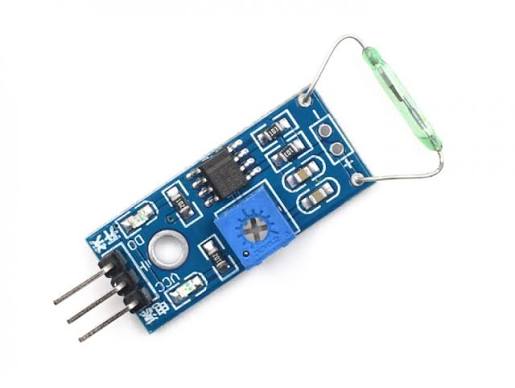

Reed Sensor Module (Magnetic Switch)

Overview

Reed switch module with magnetic sensor. Detects presence of a magnetic field (digital output). LED indicator. Supply: 3.3–5V.

Key Features

• Digital output (high/low)
• Reed contact
• LED indicator
• Supply: 3.3–5V

Specifications

• Contact rating: 10W

Dimensions & Weight

• Length: ~20 mm
• Width: ~15 mm
• Weight: ~3 g

Package Includes

• 1 × Reed Sensor Module

Applications

• Magnetic proximity sensing
• Door and window sensors
• Security and automation
