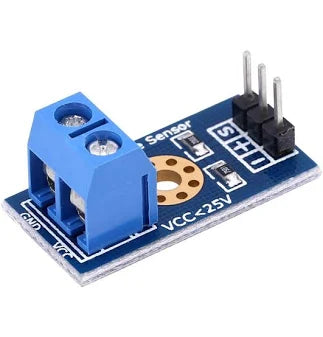

Voltage Sensor Module (Divider)

Overview

Simple voltage divider module for measuring DC voltage (up to 25V) with analog input. Output: 0–5V analog. Small size.

Key Features

• Input: 0–25V DC
• Output: 0–5V analog
• Uses two resistors (5:1 ratio)
• Small size

Specifications

• Accuracy: ±1%

Dimensions & Weight

• Length: ~20 mm
• Width: ~15 mm
• Weight: ~3 g

Package Includes

• 1 × Voltage Sensor Module

Applications

• Measuring battery voltage
• Voltage monitoring for power supplies
• Arduino and embedded projects
