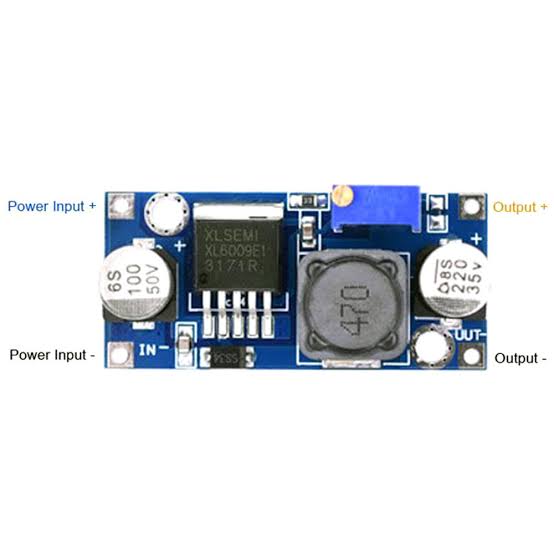

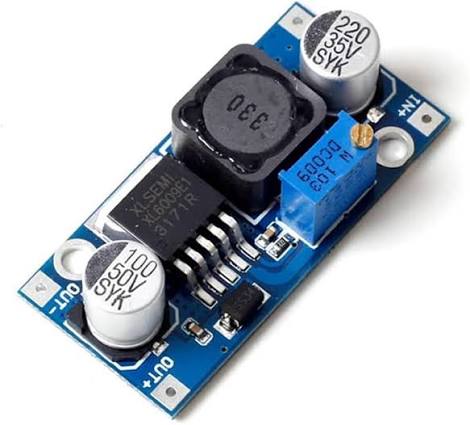

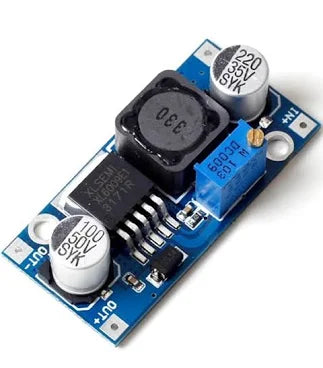

XL6009 DC Step‑Up (Boost) Module

Overview

XL6009 boost converter, adjustable output up to 30V. Input: 3–32V, current: 2A. High efficiency, compact size.

Key Features

• Input: 3–32V
• Output: up to 30V (adjustable)
• Current: 2A

Specifications

• Switching frequency: 400kHz

Dimensions & Weight

• Length: ~45 mm
• Width: ~30 mm
• Weight: ~10 g

Package Includes

• 1 × XL6009 Boost Module

Applications

• Boosting battery voltage
• Powering 12V/24V devices
• DIY power supplies
